Creative Design Industrial Drive In And Drive Through Pallet Rack System

Name: Creative Design Industrial Drive In And Drive Through Pallet Rack System
Brand: Ironstone
Price: 0.85 USD

Wholesale Creative Design Industrial Drive In And Drive Through Pallet Rack System from china suppliers

Brand Name : Ironstone

Model Number : HD-DI Model

Certification : RMI, AS4084, ISO9001, CE

Place of Origin : Jiangsu, China

MOQ : 1*20ft

Price : USD$0.85/KG

Payment Terms : L/C, T/T

Supply Ability : 3000 Tons per month

Delivery Time : 15~25 days

Packaging Details : Plastic stretch film, corrugated paper, cartons, plywood pallet, bubble film, and metal strips, etc.

Name : Drive in and drive through pallet racks

Material : High Strength Steel

Features : FIFO and LIFO

Usage Range : General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage

Dimension : H:2~16.5Mts，Depth: 2.1~10.5Mts, Width: 1.35~1.5Mts, Customizable As Request

Load Capacity : 500kgs~2000kgs/pallet

Certifications : R-Mark Certification/ AS4084/ CE / ISO9001

Safety Accessories : Wire Decks, Column Protectors, Pallet Supports, Etc.

Products Package : Steel Strip, Stretch Film, Corrugated Paper, bubble film, Plywood pallets

Services : Free CAD design, ODM&OEM, Transportation, Project installation, Systems maintenance Etc.

Contact Now

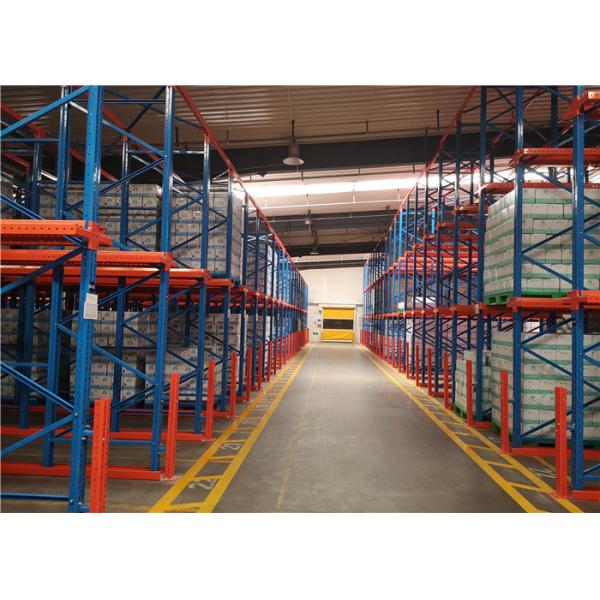

Industrial Drive In And Drive-Through Pallet Rack

Drive-in pallet rack is a system of high-density storage, which is suitable for storage sample less, batch operation, and less selective products. This system is designed for last-in, first-out (LIFO) inventory management.

It needs to put the products on the pallet and store them one by one on the supported rail according to the direction of the rail. The forklift can drive into the tunnel to deposit and withdraw the products directly, which is quite convenient.

Creative Design Industrial Drive In And Drive Through Pallet Rack System

There is a similarity between the drive-in rack and the drive-through rack, the difference is in the drive-through system, there are two entrances for forklifts to enter while the drive-in rack only has one. Last-in, first-out (LIFO) and first-in, first-out (FIFO) system are both applied in drive-through pallet rack system, which is more convenient compared with single model.

Details of drive in and drive-through racks

Name	Drive in and drive through the pallet rack system
Color	Following RAL color system, customized color available
Loading weight	1000kg-2000kg per pallet, customized load capacity
Material	Cold-rolled steel or structural steel
Characteristic	First in-Last out(FILO) for drive-in, FILO and FIFO for drive-through
Standard accessories	Safety protectors, bolts, nuts, safety pin
Components	Upright frame(upright, horizontal bracing, diagonal bracing), beams, pallet rails

Advantages

High-density storage

The type of pallet rack uses a channel as the storage medium, which saves the aisle space of each row of racks, increases the storage density, and space utilization rate and saves the storage space of the warehouse.

Cost-effective

High-density storage means that under the same space scale, this pallet rack can store more cargoes, which saving more investment costs for enterprises and achieves better storage benefits.

Fully assembled structure

Drive-in rack system adopts fully assembled structure, which is easy to disassemble, transport, adjust, move and so on. The total shelve depth cling to the wall area can be designed up to 7 pallet depths, while the total shelve depth in the middle area is usually within 9 pallet depths. The efficiency and reliability of forklift access improved obviously.

Creative Design Industrial Drive In And Drive Through Pallet Rack System
